1. Introduction
This Article serves as the User Manual for IRD8800 Series Machinery Protection System (MPS)
Introduction to IRD Mechanalysis Limited
IRD Mechanalysis Limited is a provider of Condition Monitoring Solutions to the World since 1955. Also commonly referred to as 'IRD' - IRD provides Portable Instruments and Online Systems for Vibration, Temperature, Speed, Gap and Turbine Monitoring. IRD also provides associated services like Training, Consulting, Commissioning, Repairs and Calibration. IRD has its Head Office and Manufacturing in Thane, Maharashtra, India
Introduction to Vibration Monitoring
Vibration Monitoring is the practice of installing Sensors and Systems for continuous monitoring of Vibration levels of Machinery such as Motors, Pumps, Blowers, Compressors, Turbines and more in a Continuous process plant. It is done to ensure that there is advance warning to User in the event of a rising trend in Vibration. It is also done to ensure prevention of Machine Breakdown and Downtime.
Vibration Monitoring can be done via Casing Vibration Monitoring, Relative Shaft Vibration Monitoring or End Winding Vibration Monitoring.
Introduction to IRD8800
IRD8800 is a Series of Rack Based and API670 Compliant Machinery Protection System (MPS). It has modules that can do Vibration, Temperature, Speed, Gap and Turbine Monitoring. This article focuses on IRD8800 when used for Vibration Monitoring
2. Safety Precautions
Read this section before installing, wiring, programming or calibrating any IRD8800 Rack or Module.
Ignoring the precautions below can damage the Module or the connected Sensors, or leave the monitored machine without protection.
- Provide a Power Disconnection Switch for the IRD8800 Main Rack that is easy to reach, so that power can be cut quickly in an emergency.
- Do NOT plug in or pull out a Module while the Main Rack is powered. It may damage the Module.
- Do NOT use a megger or similar insulation tester while a Sensor or Transducer is connected to the Module. It may cause damage.
- Check the polarity of the Sensor (Auxiliary) Power before connecting the Sensor. The Sensor Power is short-circuit protected, but reverse polarity can permanently damage the Sensor.
- Do not power the Main Rack until all wiring is complete as per the Installation Drawings.
- Connect the Earth terminal inside the rear of the Main Rack firmly to a proper Instrumentation Earth.
- Do not install the IRD8800 in a hazardous area or in an area with highly corrosive (chlorinated or similar) airborne gases. Installing the monitor in a purgeable enclosure is not recommended by IRD and will void the warranty.
- For intrinsically safe applications, the Sensor must be ATEX certified (or equivalent) and connected to the Monitor, located in the safe area, through a suitable safety barrier.
- Trip Bypass: if Trip Bypass is set to "Yes" in the programming menu, the Trip will never occur and the machine being monitored is unprotected. Use it only under controlled conditions.
- Before calibration or testing, obtain a proper work permit and make sure the annunciation system and the DCS/PLC in the loop are isolated from the IRD8800 system.
3. System Overview and Specifications
IRD8800 Main Rack Frame
The IRD8800 system is housed in a standard 19 inch Main Rack Frame (5U) for panel mounting. Up to 7 independent Modules slide into the rack on guides. With 7 dual-channel Modules, up to 14 measurement channels are available in one rack. Cables are terminated on barrier-type terminal strips at the rear, and conduit entry holes are provided at the bottom of the rack.
Each Module is an independent monitor with its own power supply, relays, terminal board and front keypad. If one Module fails, only its two channels are affected. Two power sources can feed each module, and an OR-ing diode in the module’s SMPS enables seamless power redundancy.
Main Rack Specifications
Parameter | Specification |
Rack type | 19 inch Main Rack Frame, 5U, panel mounting (P/N M88007) |
Capacity | Up to 7 dual-channel Modules (up to 14 vibration channels per rack) |
Construction | Extruded aluminium channels and plate, ABS press-fitted guides; epoxy-glass circuit boards with gold-plated connector contacts |
Dimensions (M88007) | 482 mm (W) x 221 mm (H) x 377 mm (D) |
Weight | Main Rack Frame 3.7 kg; Rack with 7 Modules 10.0 kg; single Module 0.9 kg |
Wiring | Barrier terminal strips for all external wiring; conduit entry holes at the bottom of the rack |
Operating temperature | 0 °C to 50 °C ambient |
Humidity | 95% non-condensing |
Standards | Designed to API 670; CE marked (EMI/EMC and safety tests) |
General Module Specifications
Parameter | Specification |
Display | 2 x 16 character LCD (Channel A on the top line, Channel B on the bottom line) and a 100-segment dual Bar Graph |
Programming | Password-protected front keypad: sensor type and sensitivity, units, full scale, Alarm and Trip levels, time delays, hysteresis, filters, relay modes, Modbus settings |
Analog output | Isolated 4-20 mA DC per channel, scaled automatically to the selected full scale; load up to 600 Ohm |
Digital output | RS485 / MODBUS RTU (see MODBUS Output section below) |
Analyser (Buffered) outputs | Front BNC per channel: buffered raw signal (time waveform) with sensor bias voltage |
Phase Reference output | Front BNC: 0-5 V DC TTL pulse train in phase with the 1 pulse/rev Tacho or ECP input; usable for balancing; time lag < 2.0 µs |
Phase Reference input | 1 pulse per revolution (2 V pk-pk) Tacho input or Non-Contact Eddy Current Probe (ECP) input |
Alarm and Trip relays | Per channel: one Alarm and one Trip relay with 2 change-over (C/O) potential-free contacts; programmable Fail Safe / Non Fail Safe, Latching / Non-Latching, time delay and hysteresis |
TX Fail relay | One per Module (common to both channels); potential-free contact |
Relay contact rating | 5 A resistive at 230 V AC (contacts usable up to 24 V DC or 230 V AC for annunciation) |
Start-up protection | Per channel, programmable 1 to 120 minutes; activated by shorting the Start-up input terminals |
Power on self-check | 4-5 seconds; 4-20 mA held below 4 mA and relays de-activated during self-check |
Calibration | National Traceable; Calibration Certificate valid for 1 year from date of issue |
Type Tests
The IRD8800 has passed the following type tests:
- Dry Heat Cyclic (Temperature Cyclic) - IS:9000 P-III & IS:9000 P-V
- Damp Heat Cyclic (Temperature Cyclic) - IS:9000 P-III & IS:9000 P-V
- RF Susceptibility (EMI) - BS EN 61000
- Radiated Susceptibility (RFI) - BS EN 61000
- Bump, Vibration and Humidity - IEC 68-2
- CE Mark, European Union
4. Modules of IRD8800
IRD8800 has a variety of Modules to serve Monitoring varieties like Casing Vibration, Shaft Vibration, End Winding Vibration and more
Casing Vibration Module M88200
M88200 is the Casing Vibration Module of IRD8800. It is able to accept 2 Vibration Inputs (Accelerometers or velometers) and 1 Phase reference Input (Laser or Non-Contact Eddy Current based Sensor)
M88200 can be factory made for either AC Power Input or DC Power Input. When M88200 is made for AC Power Input - it is named M88200-AC and is able to work on 90-270 V AC, 50/60 Hz, Single Phase Power Input. When M88200 is made for DC Power Input - it is named M88200-DC and is able to work on 24 V DC Power Input.
Standard Practice - We use a Regulated Power Supply (RPS) to convert standard 90-270 V AC, 50/60 Hz, Single Phase power Input of Purchaser to Regulated 24 V DC. We supply M88200-DC as a standard practice to work on this regulated 24 V DC
Sensitivity Options in M88200
M88200 supports 2 Sensitivity Options - mV/g and mV/mm/s. By default we set the card to 100 mV/g and 4 mV/mm/s. However, using the push buttons on Keypad and the menu options on display - the customer can adjust the sensitivity to mV/g or mV/mm/s for each channel. The Customer can also fine tune the Sensitivity between 0.1 and 999.9 mV/g when in mV/g and between 0.001 and 9.999 mV/mm/s when in mV/mm/s
Full Scale Options in M88200
M88200 is able to measure Acceleration and Velocity when Input Sensitivity is set to mV/g. M88200 is able to measure Velocity and Displacement when Input Sensitivity is set to mV/mm/s. The Maximum Full Scale permissible is summarised in Table below
|
Sensitivity Setting
|
Full Scale Units
|
Max Full Scale
|
Resolution
|
|
mV/g
|
g pk
|
10.00 g pk
|
0.01 g pk
|
|
mV/g
|
mm/s pk |
150.0 mm/s pk
|
0.1 mm/s pk
|
|
mV/g
|
mm/s RMS
|
100.0 mm/s RMS
|
0.1 mm/s RMS
|
|
mV/mm/s
|
mm/s pk
|
150.0 mm/s pk
|
0.1 mm/s pk
|
|
mV/mm/s
|
mm/s RMS
|
100.0 mm/s RMS
|
0.1 mm/s RMS
|
|
mV/mm/s
|
um pk-pk
|
1000 um pk-pk
|
1 um pk-pkmV
|
|
mV/mm/s
|
mils pk-pk
|
40.00 mils pk-pk
|
0.01 mils pk-pk
|
Buffered Output in M88200
M88200 has Two Buffered Outputs per Channel. One is at the front and other is at the back. The front output is provided via Isolated BNC and the rear output is provided via Screw Type Terminals (7 and 8 for Ch A; 31 and 32 for Ch B). There is also Buffered Output for Keyphasor at the Front - also called as Phase Reference Output and is a BNC Output.
Buffered Output can be used with Drive Current ON or Drive Current OFF when connecting a Third Party Vibration Analyser. It is however recommended to keep Drive Current OFF as M88200 is already providing required Power and Bias Voltage to the Connected Sensor
MODBUS Output in M88200
M88200 supports both MODBUS RTU as well as MODBUS TCP Output. The Module acts as a Slave for Modbus communication. Each Module has its own Slave ID (also called Module Address), Baud Rate and Parity. The Slave ID can be set between 001 and 255. The Baud Rate can be set to 4800, 9600, 19200 or 38400 bps. Parity can be set to Odd, Even or None. Our default settings are 001 for Slave ID, 9600 for Baud Rate and None for Parity.

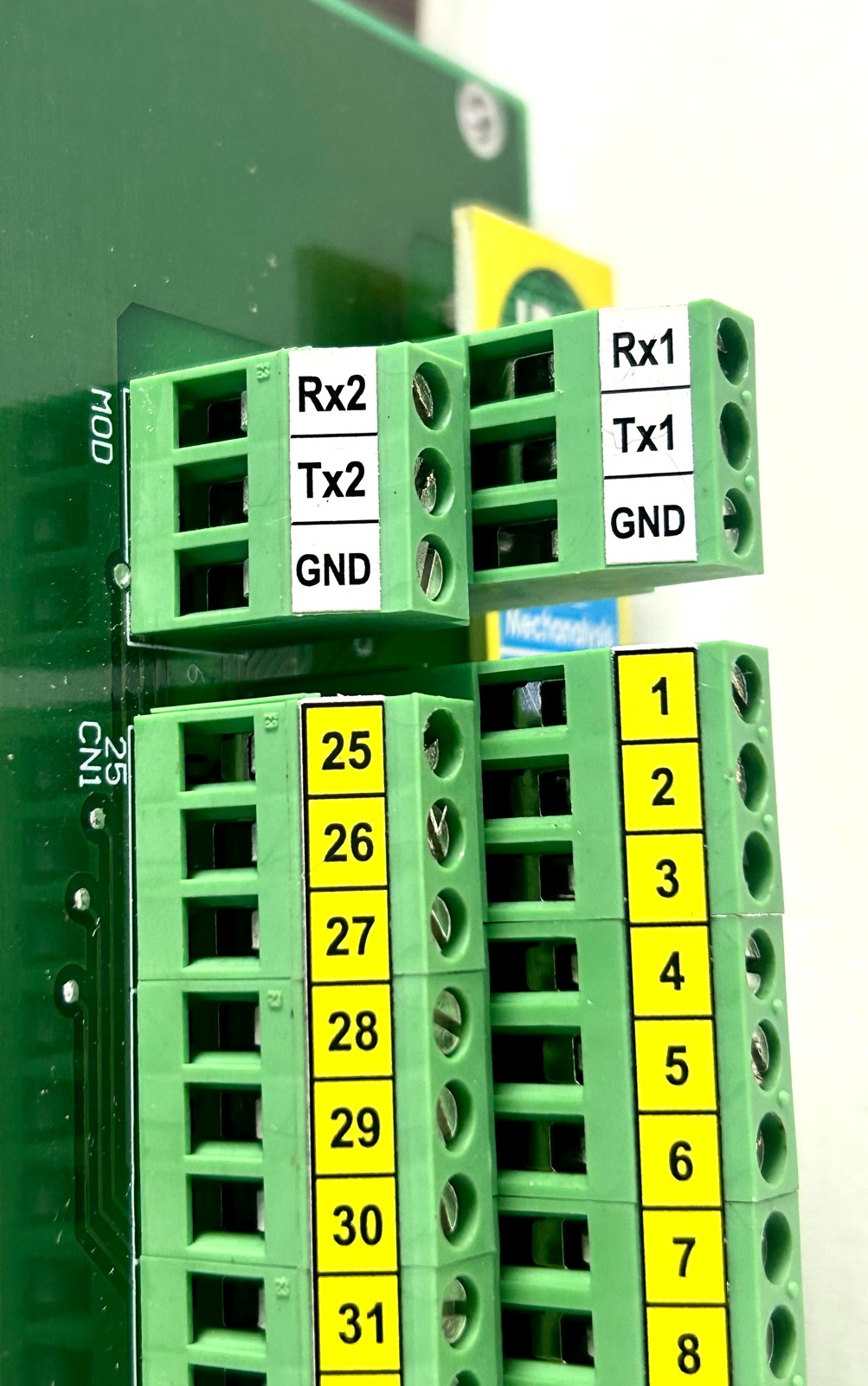

Backplane showing the MODBUS Output Connector. Rx1, Tx1 and GND form the terminals for Main connection of MODBUS Output. In event of failure of Main Terminals - an extra set of Terminals Rx2, Tx2 and GND are given for the same MODBUS Output
The MODBUS Output is available in RS485 form (2 wire - Receive (Rx) and Transmit (Tx) and a terminal for Ground) at the Backplane of each Module. If the Customer requests for Ethernet TCP Output - then we provide a Serial to Ethernet converter after our Rack where Ethernet TCP is available on an RJ45 Port.
Over Range Condition in M88200
When the Vibration exceeds the set Full Scale in M88200 - it is called an Over Range Condition. The following happens during Over Range:
- The Alphanumeric display flashes Over Range
- Since Over Range is above Alarm, Trip and Full Scale levels - the Alarm and Trip Relays become active after their set delay
- 4-20 mA output is saturated to 20mA
Sensor Power and Bias Voltage in M88200
- M88200 provides +24 V DC Sensor (Auxiliary) Power through a 4 mA constant-current source diode. It is fully short-circuit protected, but reverse polarity can permanently damage the Sensor. Confirm polarity before connecting.
- Once the Sensor is connected, the +24 V DC drops to the Sensor Bias Voltage, typically +8 V DC to +14 V DC. If the Bias Voltage is below 8 V DC or above 14 V DC, the Sensor needs replacement.
- Set TX Fail HI and TX Fail LO to 2 V above and 2 V below the actual Sensor Bias Voltage.
- The Sensor-to-Monitor cable can be as long as 600 m. Longer runs need a higher-rated current source. Tell IRD when ordering.
Filters in M88200
High Pass (HP) and Low Pass (LP) filters limit the measurement bandwidth:
- Filter Out: overall measurement; frequency response within ±10% of reading ±2 least counts
- Low Pass (upper cut-off): 1 kHz, 5 kHz or 10 kHz
- High Pass (lower cut-off): 5 Hz, 10 Hz or 20 Hz
- Filter accuracy ±10%, cut-off at 3 dB
- For velocity measurement, a 10 Hz - 1 kHz band is recommended to meet ISO requirements
Parameter | Value |
Noise at zero input | < 2% |
Amplitude linearity (Filter Out) | < 1.0% (100 mV/g accelerometer and 4 mV/mm/s velocity inputs) |
Measurement units with mV/g input | g Pk, g RMS, m/s² Pk, m/s² RMS, mm/s Pk, mm/s RMS, in/s Pk, in/s RMS |
Measurement units with mV/mm/s input | mm/s Pk, mm/s RMS, in/s Pk, in/s RMS, micron Pk-Pk, micron Pk, mil Pk-Pk, mil Pk |
Rear Terminal Connections of M88200 and M88210
The table below lists the backplane terminal (TB) numbers. M88200 and M88210 use the same layout. On M88200, TB 3 / TB 27 carry +24 V DC Sensor Power; on M88210 they carry -24 V DC (unless the Module was factory-set for +24 V drivers). See also
Typical Backplane Connections for IRD8800.
Function | Channel A TB No. | Channel B TB No. |
Signal Input | 1 | 25 |
Signal Ground (0 V) | 2 | 26 |
Sensor Power | 3 | 27 |
Shield | 4 | 28 |
4-20 mA (+) | 5 | 29 |
4-20 mA (-) | 6 | 30 |
Buffered Output | 7, 8 | 31, 32 |
Alarm relay contact 1: NO / COM / NC | 9 / 10 / 11 | 33 / 34 / 35 |
Alarm relay contact 2: NO / COM / NC | 12 / 13 / 14 | 36 / 37 / 38 |
Trip relay contact 1: NO / COM / NC | 15 / 16 / 17 | 39 / 40 / 41 |
Trip relay contact 2: NO / COM / NC | 18 / 19 / 20 | 42 / 43 / 44 |
Start-up input | 24 | 48 |
Common terminals | TB No. |
TX Fail relay NO | 21 |
TX Fail relay COM | 22 |
Ground | 23 |
Tacho (Phase Reference) Signal In | 45 |
Tacho Ground (0 V) | 46 |
Tacho Supply (-24 V DC) | 47 |
Mains: Phase (L) / Neutral (N) / Earth (E) | Connector CN3, pins 1 / 2 / 3 |
Shaft Vibration Module M88210
M88210 is the Shaft Vibration Module of IRD8800 Series. It accepts 2 x Non Contact Eddy Current Based Sensors as Input along with 1 x Phase Reference Sensor Input (Laser or Non-Contact Eddy Current Based Sensor)
Full Scale Options in M88210
Below Table summarises the possible Full Scale Options for M88210
|
Sensitivity Setting
|
Full Scale Units
|
Max Full Scale
|
Resolution
|
|
200 mV/mil
|
mils pk-pk
|
40.00 mils pk-pk
|
0.05 mils pk-pk
|
|
8 mV/um
|
um pk-pk
|
1000 um pk-pk
|
1 um pk-pk
|
|
100 mV/mil
|
mils pk-pk
|
40.00 mils pk-pk
|
0.05 mils pk-pk
|
|
4 mV/um
|
um pk-pk
|
1000 um pk-pk
|
1 um pk-pk
|
|
8 mV/um
|
um pk
|
500 um pk
|
1 um pk
|
Over Range Condition in M88210
When Vibration exceeds set Full Scale on a Channel - the condition is called as Over Range. The module behaves in the following manner during Over Range:
- Display flashes and alternates between Live Value and Over Range
- 4-20mA output saturates to 20.0mA.
- The Alarm and Trip Relay Contacts remain Active
4-20mA output remains to normal when Over Range condition goes away. Display and Relays also return to Normal and Set conditions when Over Range condition goes away.
Sensor Power and Gap Voltage in M88210
- M88210 accepts a Non-Contact Eddy Current Probe with Driver of 200 mV/mil (8 mV/µm) or 100 mV/mil (4 mV/µm) sensitivity.
- The standard Module supplies -24 V DC / 50 mA to the Probe Driver. The Driver output carries an AC signal proportional to vibration and a DC (Gap) Voltage proportional to the gap between the probe tip and the shaft.
- Sensor Power is short-circuit protected, but reverse polarity can permanently damage the Driver. Confirm polarity before connecting.
- Set TX Fail HI and TX Fail LO to 2 V above and 2 V below the prevailing Gap Voltage. (Example values: TX Fail HI -02.0 V, TX Fail LO -19.0 V.)
- Use the NEXT key to view the live Gap Voltage of each channel.
Casing Vibration Module M88250
M88250 is the Casing Vibration Module of IRD8800 specifically designed to work with Velometers that provide mV/mm/s output. It accepts 2 x Velometer Inputs and 1 x Phase Reference Input
End Winding Vibration Module M88280
M88280 is the End Winding Vibration Module of IRD8800 specifically for Generator and/or Exciter End Winding Vibration Monitoring. It accepts 2 x Vibration Sensor Inputs (Charge Output via Charge Amplifier or Fiber Optic)
Gap Monitoring Module M88300
M88300 is the Gap Monitoring Module of IRD8800 Series. It is a 2 Channel Module that accepts 2 Gap Sensor Inputs (typically Non-Contact Eddy Current Based Sensors). It also has a Keyphasor Input apart from the 2 Channels of Gap Measurement. The Module plugs into any Slot of an IRD8800 Rack. Backplane Wiring needs to be done according to the Module's requirements. The Module then provides the following features:
- Live Gap Display in Numeric and Bargraph form on Front Display
- Password Protected Programming Menu easily accessible via Front Keypad
- Provides 4-20mA output proportional to set full scale
- Provides MODBUS RTU output on RS485 connector on Backplane
- Provides Forward and Reverse Alarm as well as Trip Relay Contacts
Differential Expansion Monitoring Module M88500
M88500 is the Differential Expansion Monitoring Module of IRD8800 Series. It uses 2 Sensors to compute Differential Expansion in Complimentary mode or Ramp mode.
Eccentricity Monitoring Module M88600
M88600 is the Eccentricity Monitoring Module of IRD8800 Series. It uses Non-Contact Eddy Current Based Sensors as Input to compute Eccentricity
Shell Expansion Monitoring Module M88800
M88800 is the Shell Expansion Monitoring Module of IRD8800 Series. It uses 4-20mA from a LVDT as Input to compute the Shell Expansion
Speed Monitoring Module M88900
M88900 is the Speed Monitoring Module of IRD8800 Series. It uses either a Non-Contact Eddy Current Type Sensor or a Laser Tachometer to sense Speed
Temperature Monitoring Module M88950
5. Connection Drawings
How to Connect IEPE Accelerometer to Casing Vibration Module M88200
IEPE Accelerometer are usually 2 Wire (Signal and Ground) with a Shield. IEPE Accelerometers like IRD521 of Nominal Sensitivity 100 mV/g +/- 10% can be connected to Casing Vibration Module M88200 as shown in the drawing below

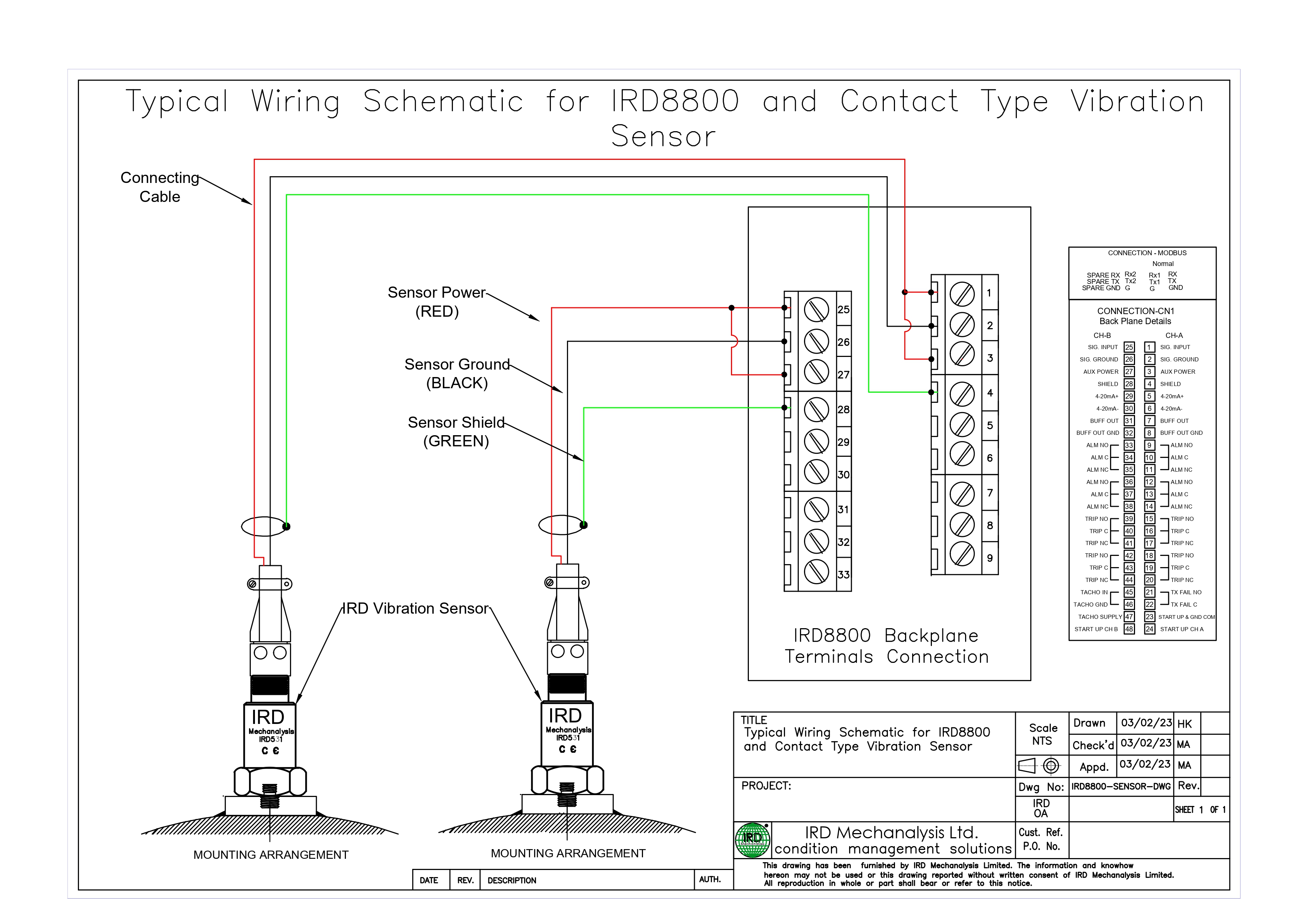

Drawing indicating Connection of 2 Contact Type Vibration Sensors like Accelerometers to Casing Vibration Module M88200
Non-Contact Eddy Current based Sensors have a Probe, Extension Cable and Driver. Drivers are available in 2 types - 1 that works on -24 V DC Input Power and the other that works on +24 V DC Input Power. The Drawing below shows how such a Non-Contact Eddy Current based Sensor that works on -24 V DC Input Power can be connected to Shaft Vibration Module M88210

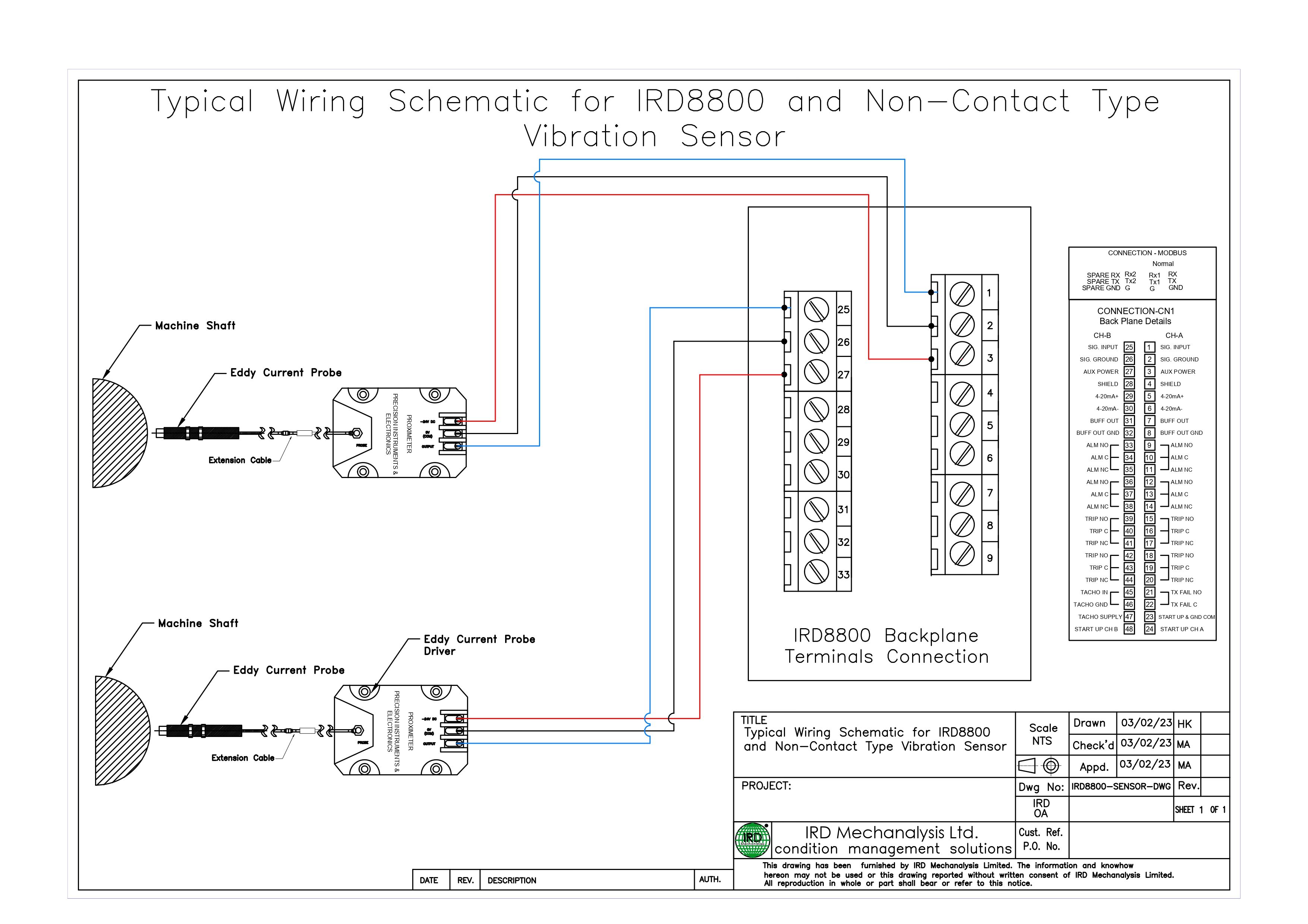

Drawing that shows connection of 2 Non-Contact Eddy Current based Sensors having -24 V DC Driver to Shaft Vibration Module M88210
It is important to specify the Input Power required to Driver at the time of manufacturing of the Module M88210 (-24 V or +24 V) as the module is manufactured accordingly. If this was not specified at the time of manufacturing and a +24 V DC Driver needs to be connected to a module M88210 factory set for -24 V DC Driver - then at site Jumpers will need to be changed at Module level to ensure compatibility. Please ensure you take telephone or email assistance from IRD Mechanalysis Limited before carrying out such change as it may Void your Warranty if done without information
6. Installation Guidelines
Mounting the Main Rack
- Mount the 19 inch Main Rack (5U) in a control-room panel, within easy reach of the operator. Keep the rear accessible for wiring, commissioning and servicing.
- For outdoor installation, use a free-standing cabinet rated IP65 (at least IP55). If the minimum temperature can fall below 0 °C, fit a temperature-controlled heater. Protect the cabinet from direct sunlight.
- Keep the location free of dripping or rain water and of heat from instruments mounted below the rack.
- Leave 3 inch clearance above and below, and 2 inch on each side, for ventilation.
- Support the rack at the back as shown in the Installation Drawing. Connect the Earth terminal inside the rear of the rack to the Instrumentation Earth.
- Slide each Module smoothly into its slot without extra force and tighten the front-panel screws so the Module seats firmly on the backplane connectors.
- Complete all wiring as per the Installation Drawings before applying power.
Shielding, Grounding and Cabling
- Sensor signals are weak and can pick up electrical noise from nearby power lines, walkie-talkies, mobile towers, electrostatic discharge, lightning, or large motors, generators and transformers. Noise can cause wrong readings or spurious Alarms and Trips.
- Each Module has an EMI filter. The rack provides shielding, but it must be connected to a proper Instrumentation Earth.
- Use twisted-pair, individually shielded and overall shielded cable for Sensor and other signal cables. Run it in metal conduit, in cable trays separate from high-voltage power cables.
- Do not route Sensor cables through conduits or trays carrying more than 30 V AC or DC.
- Route conduits through well-ventilated areas away from hot spots such as steam lines. Do not bury conduits in insulation. Install them so that process equipment can be dismantled without damaging the conduit.
- IRD can supply Sensor cable assemblies: FRLS shielded 6.5 mm cable, with Stainless Steel or GI conduit.
Sensor Mounting
- Choose measurement points with a vibration engineer. Typical points are radial on the bearing housing in the load zone, plus axial where required.
- Fix the Sensor firmly to a clean, flat, smooth and burr-free surface. Stud mounting gives the best performance.
- Tie the cable to the Sensor so it does not twist when connecting or disconnecting.
7. Front Panel and Keypad
Every Module has the same front panel layout:
Item | Description |
LCD Display (2 x 16) | In normal mode: top line shows the Channel A value and units, bottom line shows Channel B. In Program mode it shows the menu. |
Bar Graph (100 segment, 2 bars) | Level of each channel as a percentage of the Full Scale, the set Alarm level or the set Trip level (selected in the menu) |
Alarm / Trip LEDs | One dual LED per channel above its bar: Yellow = Alarm, Red = Trip |
Start-up LED | Separate LED, common to both channels, showing that Start-up protection is active |
Analyser Output BNCs (A, B) | Buffered raw signal (time waveform) with sensor bias voltage, for a portable analyser |
Phase Ref. BNC | 0-5 V DC pulse train in step with the 1 pulse/rev Tacho or ECP input |
Key | Function |
PROG | Press and hold 2-3 seconds to enter Program Mode. Inside the menu, moves to the next step. After the password, gives access to Calibration. |
▲ (Up Arrow) | Selects between options; increments the digit under the cursor (0-9) |
SHIFT | Moves the cursor to the next digit (left to right) |
BACK | Goes one step back |
ACK | Acknowledges an Alarm or Trip |
NEXT | In normal mode, scrolls through: Sensor Bias Voltage (M88200) or Gap Voltage (M88210), set Alarm level, set Trip level, machine speed (if a tacho is connected), and Module / firmware version |
8. Operation
Power On
- Apply power to the rack. Earth (E) must be connected to the Instrumentation Earth.
- Each Module runs a 4-5 second self-check and shows the IRD / Module name (for example M88200). During this time the Bar Graph is blank, the LEDs are off, the Alarm, Trip and TX Fail relays are de-activated, and the 4-20 mA output is held below 4 mA so the DCS sees the signal as not yet valid.
- The Module then switches to the Bar Graph display mode and shows live values, for example "A:00.00 g Pk" on the top line and "B:000.0 mm/s Pk" on the bottom line.
Alarm and Trip
- Each channel compares its reading with its own Alarm and Trip levels.
- When a level is exceeded for longer than the set time delay, the corresponding LED lights (Yellow = Alarm, Red = Trip) and the relay operates.
- Press ACK to acknowledge. If Latching is Enabled, the relay resets only after it has been acknowledged and the level has dropped below the set point minus hysteresis. If Latching is Disabled, the relay follows the condition.
- Non Fail Safe (standard): relay is de-energised when healthy and energises on Alarm/Trip. Fail Safe: relay is energised when healthy and de-energises on Alarm/Trip.
Start-up Protection
When enabled in the menu, Start-up Protection is activated by shorting the Start-up input terminals (TB 24 for Channel A, TB 48 for Channel B). During the programmed Start-up Delay (1-120 minutes), Trip protection is inhibited so that a machine run-up does not cause a false Trip, and the Start-up LED is lit.
Transducer Fault (TX Fail)
- The Module continuously checks each Sensor Bias / Gap Voltage against the TX Fail HI and LO limits.
- On a TX Fail, the Bar Graph of that channel flashes and the TX Fail relay (common to the Module) operates. The Alarm and Trip relays are de-activated to avoid false trips, and the 4-20 mA output is pulled below 4 mA so the DCS can detect the fault.
- The TX Fail condition resets automatically when the fault clears.
- See also: Tx Fail Relay Contacts in IRD8800 Series Monitoring System
Entering Program Mode
- Press and hold PROG for 2-3 seconds. The display shows "PROGRAM MODE Password:0000".
- Press SHIFT. The cursor blinks under the left-most digit. Use ▲ to set the digit and SHIFT to move to the next one. Enter the 4-digit password.
- Press PROG to confirm. A wrong password exits Program Mode.
- Work through the menu below. In each step, use ▲ to choose an option, or SHIFT and ▲ to enter a number, then press PROG to save it and move to the next step.
The default password at dispatch is
0000. Change it to your own password for security. The new password cannot be re-entered for confirmation, so note it carefully. If the password is lost, contact IRD at
service@irdmech.com.
Whenever you change the Sensor type or the Measurement Unit, the Alarm and Trip settings may change. Check every setting again afterwards.
Module (Common) Settings
The "Example value" column shows typical screen values for illustration only. Always check the actual settings on your Module.
Display prompt | Options / Range | Example value | Notes |
Change Password | Yes / No | No | Yes leads to "New Password xxxx" |
Module Address | 001-255 | 001 | Must be unique on the RS485 network, or Modbus communication will fail. Channel A is addressed as <address>A and Channel B as <address>B (for example 4A, 4B). |
Baud Rate | 4800 / 9600 / 19200 / 38400 | 9600 | Must match the Modbus master |
Choose Parity | Even / Odd / None | None | Must match the Modbus master |
No. of Channels | 1 / 2 | 2 | If 1 is chosen, Channel A is used |
Trip Bypass | Yes / No | No | CAUTION: Yes disables Trip completely |
Bar Graph % of | Alarm Set / Trip Set / FS Range | FS Range | Using "Alarm Set" across the rack lets operators see at a glance how close each channel is to its Alarm, whatever its units or range |
Channel A Prog | Yes / No | Yes | No skips to Channel B |
Channel Settings (repeat for Channel B)
Display prompt | Options / Range | Example value | Notes |
A Sns Units ? | M88200: mV/g, mV/m/s², mV/mm/s, mV/in/s M88210: mV/micron, mV/mil | M88200: mV/g M88210: mV/micron | Sensor output type |
A Sns (sensitivity) | M88200: 0.1-999.9 mV/g or 0.001-9.999 mV/mm/s M88210: see Full Scale table | M88200: 100.0 mV/g (4 mV/mm/s for velocity) M88210: 8 mV/µm | |
A Unit | M88200 (mV/g input): g Pk, g RMS, m/s² Pk, m/s² RMS, mm/s Pk, mm/s RMS, in/s Pk, in/s RMS M88200 (mV/mm/s input): mm/s Pk/RMS, in/s Pk/RMS, micron Pk-Pk, micron Pk, mil Pk-Pk, mil Pk M88210: micron Pk-Pk, micron Pk, mil Pk-Pk, mil Pk | M88200: g Pk M88210: micron Pk-Pk | M88200 integrates once only: an acceleration input gives acceleration or velocity, and a velocity input gives velocity or displacement |
A-FS (Full Scale) | Up to the maximum in the Full Scale tables in Section 4 (M88200 RMS maxima: 7.00 g RMS, 70.0 m/s² RMS, 4.000 in/s RMS; Pk: 6.000 in/s Pk) | M88200: 10.00 g Pk M88210: 250 micron Pk-Pk | 4-20 mA is scaled automatically to this value |
A Floor Noise % | 0-10% of Full Scale | 01 | Signals below this level are ignored (no display). Lower is better. |
A - TX Fail HI / LO | Voltage | M88210: HI -02.0 V / LO -19.0 V | Set ±2 V around the actual Bias (M88200) or Gap (M88210) voltage |
A - Filter | In / Out | Out | In opens the LP and HP filter steps |
A - Filter LP | 1 kHz / 5 kHz / 10 kHz | 10 kHz | Upper cut-off |
A - Filter HP | 5 Hz / 10 Hz / 20 Hz | 10 Hz | Lower cut-off |
A - Start up | Disable / Enable | Disable | Enable opens the Start-up Delay step |
A - Start up Delay | 1-120 min (1 min steps) | 001 Min | |
A - Adj 4mA | Counts (up to 60) | 26 (4 mA is normally around 30 counts) | Fine-tunes 4 mA (about ±0.15 mA in total). Short the input (0 mV), connect a DMM to the 4-20 mA terminals, then press ▲ to increase or SHIFT to decrease. The only setting that changes the output live. See 4mA Adjustment in IRD8800 Module M88210 |
A Trip Set | Up to Full Scale minus 1 least count | 01.99 (example) | For example, FS 5.00 g Pk gives a Trip of at most 4.99 g Pk |
A Tr Hysteresis | Up to 30 counts | - | 5 counts recommended, to avoid relay chatter |
A Tr FS/NFS | Non Fail Safe / Fail Safe | Non Fail Safe | |
A Tr Latching | Disabled / Enabled | Disabled | |
A Tr Delay Time | 0-60 s | - | 5 s recommended, to avoid spurious trips |
A Alarm Set | Up to Trip level minus 1 least count | 01.99 (example) | |
A Al Hysteresis / FS/NFS / Latching / Delay Time | As for Trip | As for Trip | |
Channel B Prog | Yes / Exit To Bargraph / Jump To A Prog | Yes | |
Copy Ch A Setup | Yes / No | No | Yes copies all Channel A settings to Channel B and exits |
Exit to? | Bargraph / To A Program | - | Bargraph saves and exits Program Mode |
10. Field Calibration Check (M88200 only)
If the difference between Current and Last CAL Counts is larger than the limit given in a step, do NOT store the new value. Send the Module to IRD for service instead.
Before You Start
- Obtain a work permit. Isolate the annunciation system and DCS/PLC from the IRD8800.
- Switch off power to the Main Rack. The Module does not need to be removed.
- Disconnect the incoming Sensor cables for Channels A and B, so that the +24 V Sensor Power on TB 3 and TB 27 is isolated from the Signal Inputs TB 1 and TB 25.
- Have ready a Function Generator, Digital Multimeter, Oscilloscope and a +24 V DC source, all with valid calibration.
- Connect the signal source to TB 1 (+) / TB 2 (-) for Channel A and TB 25 (+) / TB 26 (-) for Channel B. Both channels can be fed together by linking TB 1 to TB 25 and TB 2 to TB 26.
- Switch on and wait until the Module shows the bar graph display.
- Enter Program Mode. Set sensor type mV/g, sensitivity 100.0 mV/g and unit g Pk on both channels. Exit Program Mode.
- Enter Program Mode again with the password. The firmware version is shown. Press PROG to enter Calibration. The display shows "Channel A Zero Tare", with Current CAL Counts on the left and Last CAL Counts on the right.
- Zero: short the inputs (0.0 mV). If the difference is within 50 counts, press ▲ to store. Press PROG to reach "Channel B Zero Tare" and repeat.
- Span: press BACK until "Channel A Span" appears. Feed 707.0 mV AC RMS at 100 Hz. If the difference is within 100 counts, press ▲ to store. Press PROG for Channel B and repeat.
- Zero Bias Voltage: press BACK until "Zero Bias Voltage Ch A" appears. Remove the AC signal and feed 0.0 V DC. If the difference is within 50 counts, press ▲ to store. Press PROG for Channel B and repeat.
- Span Bias Voltage: press BACK until "Span Bias Voltage Ch A" appears. Feed +24.0 V DC. If the difference is within 100 counts, press ▲ to store. Press PROG for Channel B and repeat.
- Press PROG twice to leave Calibration and return to the bar graph. Disconnect the DC source.
- Accelerometer input, velocity output: set mV/g, 100.0 mV/g, unit mm/s Pk, then repeat steps 4-9.
- Velocity sensor input: set mV/mm/s, 4.000 mV/mm/s, unit mm/s Pk. Do the Zero steps, then for Span feed 441.0 mV AC RMS at 100 Hz, and complete the remaining steps.
- Piezo velocity sensor, displacement output: set mV/mm/s, 4.000 mV/mm/s, unit micron Pk-Pk, then repeat steps 4-9.
11. Maintenance and Troubleshooting
Routine Maintenance
- Have the Modules recalibrated by IRD every year. The Calibration Certificate is valid for 1 year from the date of issue.
- Keep the ventilation clearances around the rack free, and keep the panel free from water and excessive heat.
- Never hot-swap Modules, and never megger cables while Sensors are connected.
- Check Sensor Bias / Gap Voltages periodically with the NEXT key.
Troubleshooting
Symptom | Possible cause | What to do |
Bar graph flashing, TX Fail relay operated, 4-20 mA below 4 mA | Sensor, cable or connection fault; Bias / Gap Voltage outside the TX Fail limits | Check wiring and polarity. Read the Bias / Gap Voltage with NEXT. On M88200, a bias outside 8-14 V DC means the Sensor needs replacement. Check that TX Fail HI/LO are set ±2 V around the normal bias. |
4-20 mA below 4 mA just after power-up | Normal 4-5 s power-on self-check | Wait for the self-check to finish |
Trip never operates | Trip Bypass set to "Yes" | Set Trip Bypass to "No" |
No Modbus communication | Duplicate Module Address, or Baud Rate/Parity mismatch | |
Unsteady readings or spurious Alarms | Electrical noise, poor earthing, or no time delay or hysteresis | Check shielding, earthing and cable routing (Section 6). Use a time delay of about 5 s and a hysteresis of about 5 counts. |
Sensor dead after connection | Reverse polarity of Sensor Power | Check polarity before connecting a new Sensor |
Password lost | - | |
CAL Counts differ beyond the limits during a calibration check | Module needs service | Do not store the values. Return the Module to IRD. |
12. Repair, Calibration, Warranty and Service
Validity of Calibration Certificate
All Vibration Monitoring Modules of IRD8800 are accompanied with a Calibration Certificate that is valid for 1 year from the date of Issuance
Calibration check pre-dispatch
All Vibration Monitoring Modules of IRD8800 undergo a 5-point Calibration check before dispatch. The Display, 4-20mA and Relay Contacts are checked at 0%, 25%, 50%, 75% and 100% Input
Calibration Standard
IRD8800 Modules are calibrated by IRD against National Traceable standards.
Warranty
- New products: 3-year warranty on new products. General warranty conditions and the procedure in case of a defect are given in Warranty on Products.
- Repairs carried out by IRD carry a 3-month repair warranty.
- Unauthorised changes, such as changing M88210 driver-power jumpers without IRD's guidance or installing the rack in a purgeable enclosure, may void the warranty.
How to Get Service
- Email service@irdmech.com with the Module model, serial number, fault description and the circumstances in which the fault appeared, and ask for a Return Material Authorisation (RMA) number.
- Once the RMA number is issued, send the Module with its accessories and your Purchase Order quoting the RMA number. Tag the RMA number on the Module.
- IRD evaluates the Module and sends a recommendation (Calibration, Repair or Exchange) if no service type was specified.
- After repair or calibration, the Module is returned with its Calibration Certificate.
IRD Mechanalysis LimitedE8-14, Bhumi World Industrial Park, Near Bhiwandi-Kalyan Junction, Thane – 421311, Maharashtra, India
Email:
service@irdmech.com | Web:
www.irdmech.com 13. Related Articles
