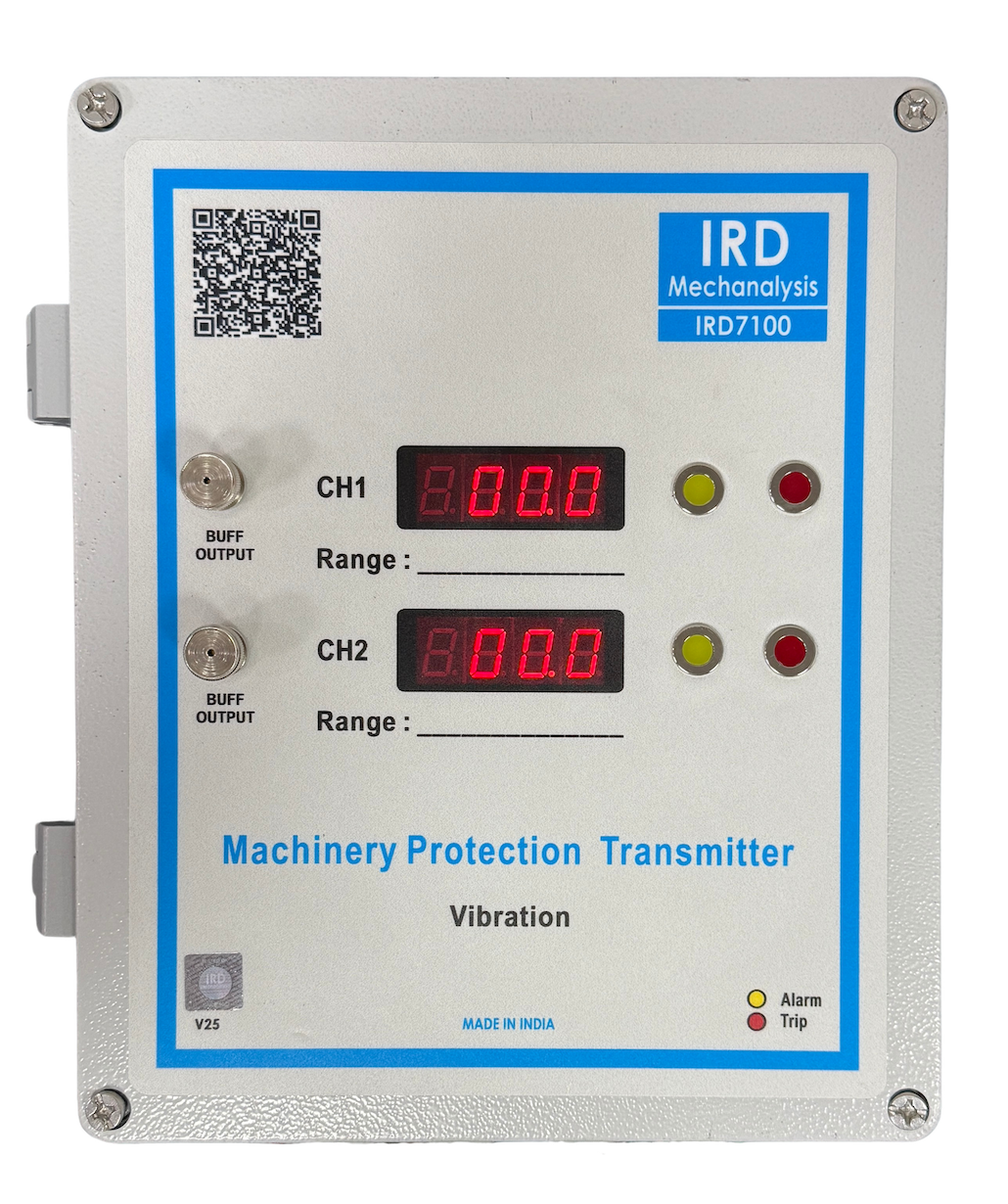

What is IRD7100 MPT V25?
IRD7100 is our Machinery Protection Transmitter (MPT). In the year 2025, we have upgraded it to support Floating Power Supply Input - an Input where Voltages between Line and Neutral are 230 V AC, Line and Earth are 230 V AC, but between Neutral and Earth comes out to be 110 V AC (in a grounded power supply - voltage between Neutral and Earth is usually less than 2 V AC).
So, IRD7100 MPT V25 can work with both Grounded Power Supply as well as Floating Power Supply. It retains all its original functions. It provides Instantaneous display of Vibration on its lid, Alarm and Trip Relay Contacts per channel along with LED on Lid for Status Indication, 4-20 mA output per channel, 0-5 V DC output per channel and Buffered Time Waveform output per channel on Lid via BNC.
IRD7100 MPT V25 is designed for Round-the-Clock, 24x7, 365 days Vibration Monitoring and Protection. It can be ordered for compatibility with Accelerometers, Velometers and Non-Contact Eddy Current Sensors - based on specific requirement
