IRD306DP Plus Vibration Meter User Manual

User Manual of IRD306DP Plus

Quick Start

  1. Install the correct number of 9V batteries for your meter’s manufacture date (see Battery).
  2. Connect the coiled cable between IRD306DP and IRD531: 2-pin MS end to the sensor, 2-pin MRS end to the meter on current kits. Use the guide vanes and do not force connectors.
  3. Fit the magnet or stinger firmly on IRD531 (a loose accessory ruins readings).
  4. Power ON and use SELECT UNIT to choose Velocity or Displacement.
  5. Place the sensor on the measurement point, wait about 2 seconds for a stable reading, and note it.
  6. Compare velocity readings with the severity chart on the meter face (see How to Read the Vibration Severity Chart).
  7. Power OFF and store the kit in its case.

Introduction

IRD306DP Plus is a digital vibration meter from IRD Mechanalysis Limited. It measures overall vibration amplitude in Velocity (mm/s RMS) and Displacement (microns pk-pk). It uses Velometer IRD531 (nominal sensitivity 4 mV/mm/s) and a 3½-digit LCD, and it has a kick stand for convenience.
It is ideal for routine vibration checks on motors, pumps, fans, compressors, turbines and similar general machinery. Readings can be compared with the ISO 10816-1 severity chart printed on the meter face, or with ISO 20816 standards.

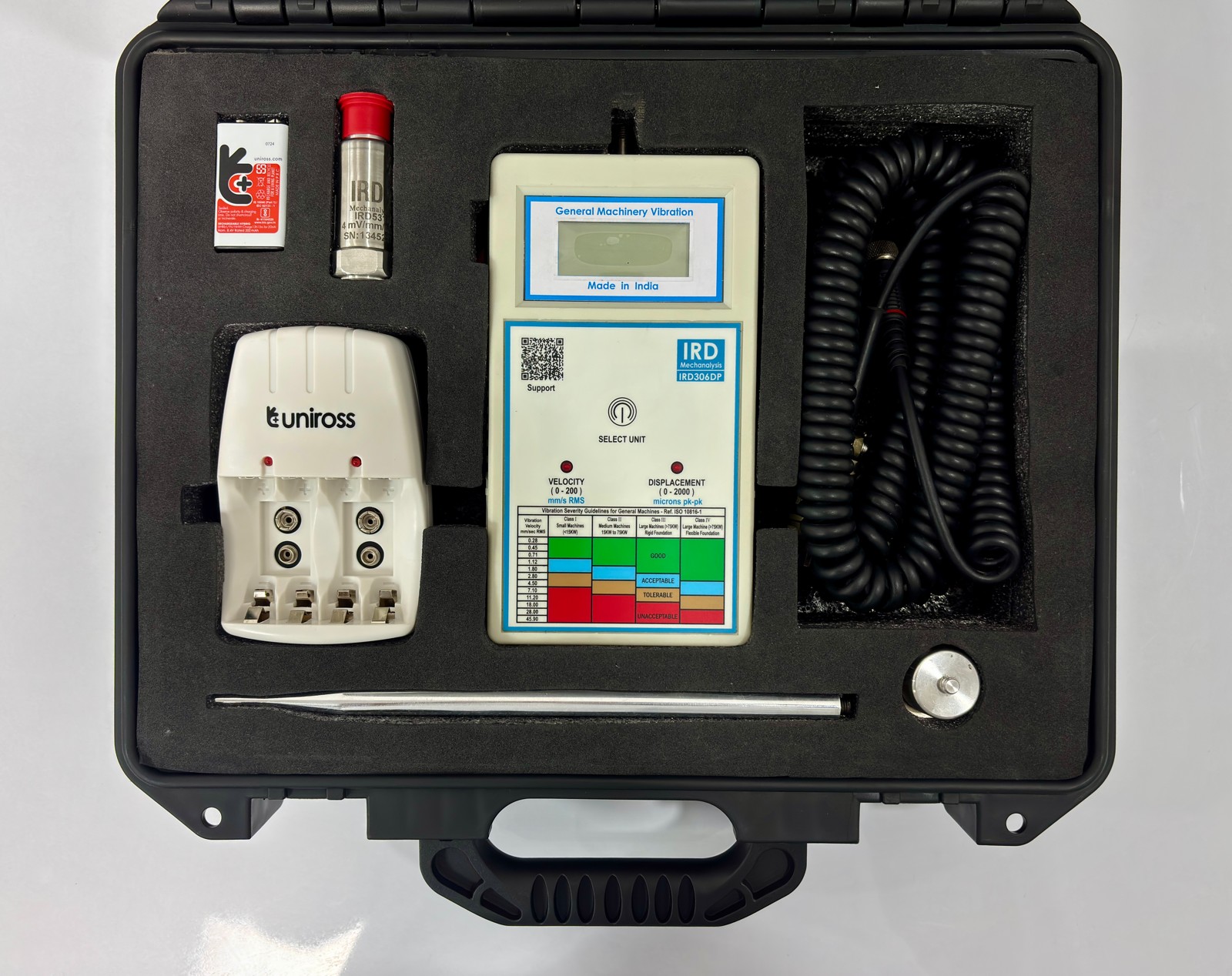

IRD306DP Plus vibration meter kit in its hard carrying case, showing the meter, IRD531 sensor, coiled cable, stinger, 20 kg magnet, 9V battery and battery chargerIRD306DP Plus Vibration Meter Kit (hard case)
What you see in the kit photo:
  • Centre: IRD306DP Plus meter, with the LCD, Support QR code, SELECT UNIT control, Velocity and Displacement indicators, and the ISO 10816-1 severity chart.
  • Top left: 9V rechargeable battery and the IRD531 Velometer (4 mV/mm/s).
  • Left: 9V battery charger.
  • Right: coiled sensor cable.
  • Bottom: 9" stinger (extension rod) and the 20 kg pull-strength magnet.
  • Outer: hard carrying case.

Key Specifications

Measurement
ParameterValue
MeasurementsVelocity mm/s RMS; Displacement µm (microns) pk-pk
Velocity range0.1 to 200.0 mm/s RMS (velocity peak available on request)
Displacement range1 to 2000 µm pk-pk
Frequency range, velocity5 Hz to 6000 Hz
Frequency range, displacement5 Hz to 1000 Hz
Instrument accuracy0.5% of full scale ±1 count (meter only)
Display3½-digit LCD
Input sensorIRD531 Velometer, 4 mV/mm/s ±10% (single axis)
Severity reference on meter faceVibration Severity Guidelines for General Machines, Ref. ISO 10816-1

Power, environment and physical
ParameterValue
Power1 × 9V (post May 2024) or 2 × 9V (pre May 2024); rechargeable or dry cell
Battery requirement (brochure)1 × 9V dry cell, 100 mAh. Typical 9V cells used are about 210 mAh each.
Low-battery indicationWhen battery voltage falls below ~8.2 V DC (use ~8.2–9.8 V for best results)
Operating temperature0 to 50 °C
Storage temperature−18 to 65 °C
Instrument dimensions180 (L) × 100 (W) × 40 (H) mm
Instrument weight0.4 kg
Kit weight2.5 kg including standard accessories
Standard cable (current kits)Coiled, 0.8 m collapsed / 3 m expanded; 2-pin MRS (meter) ↔ 2-pin MS (sensor)
Kick standYes
Warranty1 year (IRD portable digital vibration meters)

Controls and Front Panel

  • Power switch: turn the meter ON/OFF.
  • SELECT UNIT: choose Velocity (0–200 mm/s RMS) or Displacement (0–2000 microns pk-pk) before taking a reading. Red indicators sit above the VELOCITY and DISPLACEMENT labels.
  • Kick stand: provided for convenience.
Front panel, from top to bottom (see the kit photo above): General Machinery Vibration LCD, Support QR code, IRD306DP logo, SELECT UNIT control, VELOCITY (0–200) mm/s RMS and DISPLACEMENT (0–2000) microns pk-pk indicators, and the printed Vibration Severity Guidelines for General Machines (Ref. ISO 10816-1) chart.
After placing the sensor, wait about 2 seconds for the reading to settle.

Standard Kit (as of April 2026)

  1. 1 × IRD306DP Plus Vibration Meter
  2. 1 × IRD531 Vibration Sensor (Velometer), 4 mV/mm/s
  3. 1 × Coiled cable, 2-pin MS (sensor) to 2-pin MRS (meter), 0.8 m collapsed / 3 m expanded
  4. 1 × 9" extension rod (stinger) for IRD531
  5. 1 × 20 kg pull-strength magnet for mounting IRD531
  6. 1 × 9V rechargeable battery
  7. 1 × Battery charger
  8. 1 × Carrying case: hard or soft, any one, as ordered (hard case is supplied unless a soft case is specified)
Detail: What items are offered as standard accessories

Battery

  • Post May 2024: one 9V battery.
  • Pre May 2024: two 9V batteries.
  • The April 2026 brochure lists the battery requirement as 1 × 9V dry cell, 100 mAh. Typical 9V cells used with IRD306DP are about 210 mAh each, and both rechargeable and non-rechargeable (dry cell) types can be used.
  • Fit the battery snugly on the battery snappers with correct polarity (match the + and − terminals).
  • Low-battery indication appears below ~8.2 V DC. Replace or recharge before measuring. For best results use a battery between 8.2 V and 9.8 V DC.
A typical 9V battery of the type used in IRD306DPA typical 9V battery
Detail: What batteries does IRD306DP use?

Sensor Input Connectors (by year)

Match the cable to your meter’s connector. Never force a mismatched plug.
  • Pre-June 2023: Mini XLR sensor input.
  • Post-June 2023: TNC sensor input.
  • Current standard kits (April 2026): coiled cable with 2-pin MRS (meter end) ↔ 2-pin MS (sensor end).
The three generations are not interchangeable. If you are unsure which one you have, contact service with your serial number before ordering a spare cable.
IRD306DP meter top showing the female TNC sensor input connector labelled SIGNAL INPUT VelometerIRD306DP with TNC connector (female), post-June 2023
IRD306DP meter with the Mini XLR sensor input connector used before June 2023IRD306DP with Mini XLR connector (pre-June 2023)
Detail: Types of sensor input connector

How to Read the Vibration Severity Chart

The meter face carries a printed chart titled Vibration Severity Guidelines for General Machines, Ref. ISO 10816-1. It has four machine-class columns and four colour zones.
Machine class (as printed)Description
Class ISmall machines (<15 kW)
Class IIMedium machines, 15 kW to 75 kW
Class IIILarge machines (>75 kW), rigid foundation
Class IVLarge machines (>75 kW), flexible foundation
Zones on the chart: GOOD, ACCEPTABLE, TOLERABLE and UNACCEPTABLE.
  1. Measure in Velocity mode (mm/s RMS). The chart is in velocity, not displacement.
  2. Choose the column for your machine’s class: size (kW) and, for large machines, whether the foundation is rigid or flexible.
  3. Find your reading on the velocity scale at the left of the chart and see which colour band it falls in for that column.
  4. Record the reading and the zone. Measure the same points each time so you can see the trend.
Note
The chart is guidance as printed on the meter. It is not a substitute for the full ISO 10816-1 or ISO 20816 standard. Machine class and foundation type change the limits, so always use the correct column, and refer to the standard or the machine manufacturer for acceptance criteria.

How to Measure

  1. Confirm meter and IRD531 have valid calibration where required.
  2. Connect the cable and power ON with healthy batteries.
  3. Select Velocity or Displacement with SELECT UNIT. Use Velocity for overall machine condition against the severity chart.
  4. Mount IRD531 on the target (hand, magnet, stinger, or stud), aligned to the axis you want. Mount it firmly; a loose magnet or stinger ruins readings.
  5. Wait about 2 seconds; record mm/s RMS or µm pk-pk.
  6. Measure the same points each time for trending.
  7. Power OFF and pack the kit.
Care and safety
  • Do not force connectors; use the guide vanes and the matching cable.
  • If your magnet has a safety plate, slide it off before mounting. Take care while placing the safety plate back on the 20 kg magnet, as it may pinch fingers.
Related: What is a Velometer? · What is overall vibration? · IRD531 data sheet

Troubleshooting

SymptomWhat to check
Will not power onCorrect battery count for your year; polarity and snug snappers; try fresh/charged 9V cells.
Low-battery behaviour / unstable readingsBattery below ~8.2 V: replace or recharge.
No / odd readingCable fully seated for your connector type; magnet/stinger tight; wait 2 s; correct Velocity vs Displacement mode.
Connector will not mateDo not force. Mini XLR, TNC, and current MRS/MS generations are not interchangeable; use the matching cable.
Reading unrelated to the machineMount closer to bearing/housing; avoid loose covers; confirm axis.
Not sure which chart column to usePick the class by machine power (kW) and foundation type, as printed on the chart; see How to Read the Vibration Severity Chart.

Demo Video

Also: Demo video article

Repair, Calibration and Warranty

  • Calibration is National Traceable at IRD’s Thane laboratory.
  • Hand-carried instruments delivered in the morning are typically returned the same day; couriered instruments about 1 week.
  • Portable digital vibration meters carry a 1-year product warranty from supply.
  • Warranty is tracked by the serial number laser-marked on the enclosure. Quote it when you contact service.
  • Each kit is supplied with a test report covering a 5-point calibration check of IRD531 (with nominal sensitivity check), a 5-point calibration check of the meter with IRD531 in both Velocity and Displacement modes, and visual, dimensional and functional checks of the standard accessories.
Serial number laser-marked on the IRD306DP enclosureSerial number laser-marked onto the enclosure of IRD306DP for permanent marking
Quote / service: service@irdmech.com · WhatsApp +91-9082527331
