Quick Start
- Charge the meter via the USB-C port on top if needed, then press Power On on the keypad.
- Connect the IRD521 sensor to the meter with the coiled cable (2-pin end to sensor, 3-pin MRS end to meter). Align and push gently — do not force connectors.
- From the Menu, use the arrow keys to open the vibration measurement screen and press OK.
- Select the parameter (Acceleration, Velocity, Displacement or Spike Energy) and units.
- Place the sensor on the measuring point and wait a few seconds for the reading to settle.
- Press OK/SAVE to store the reading if needed (max 100 readings).
- Power off when done (the meter also powers off automatically after 5 minutes of inactivity).
Introduction
IRD202 is a Vibration Meter and Bearing Health Checker. It measures vibration amplitude in Acceleration, Velocity and Displacement in metric and imperial units, as RMS, pk or pk-pk values. It assesses anti-friction bearing condition with
Spike Energy. Readings can be saved with date and time stamp and transferred to a PC using the IRD202 Data Explorer software. The meter runs on a 4000 mAh Lithium Polymer battery charged via the USB-C port, which is also the data port.

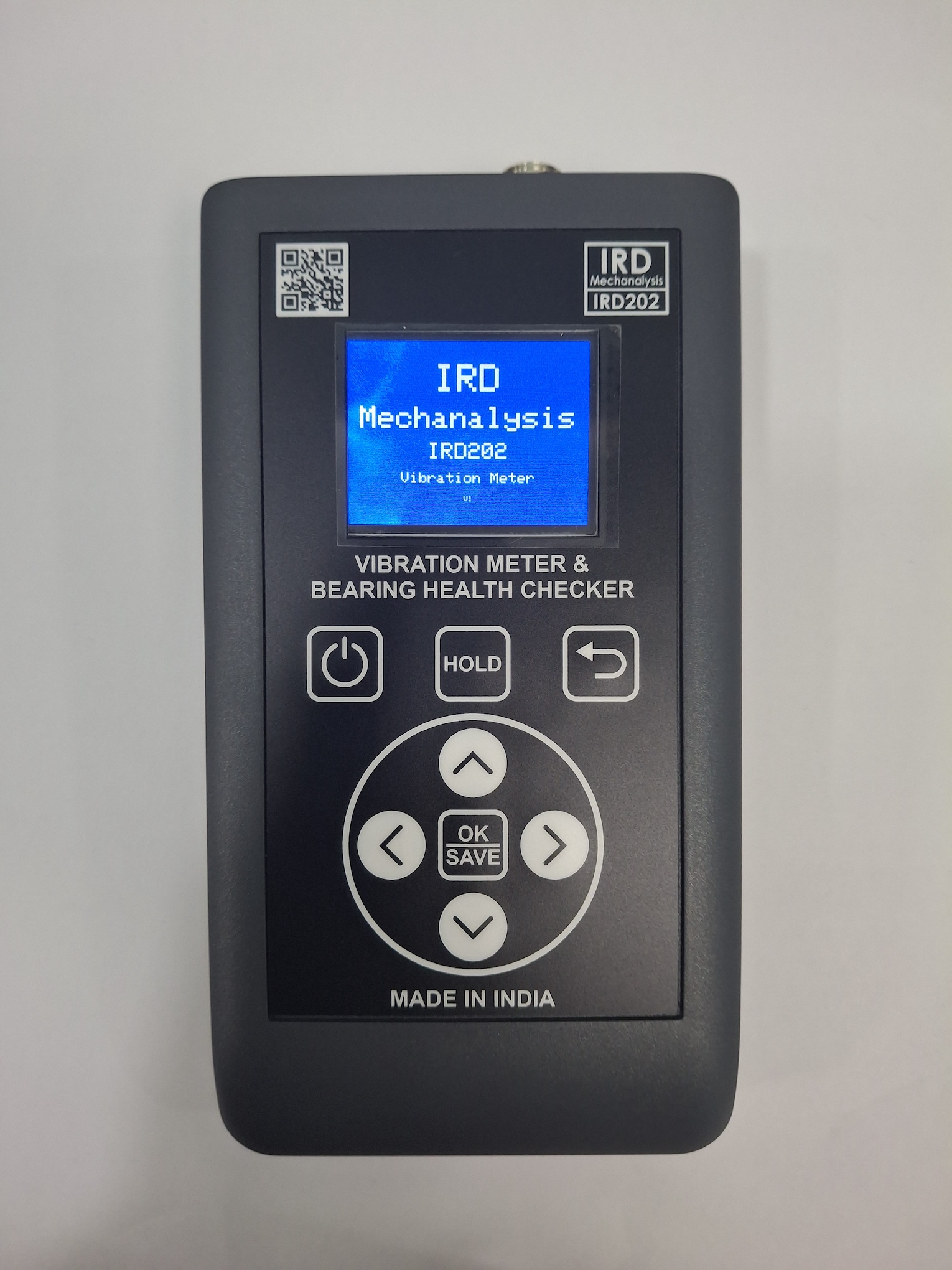

IRD202 Vibration Meter and Bearing Health Checker
Key Specifications
| Measurements | Acceleration, Velocity, Displacement (metric & imperial; RMS / pk / pk-pk); Spike Energy |
| Sensor | IEPE/ICP accelerometer, 100 mV/g nominal (kit: IRD521, 2-pin) |
| Cable | Coiled, 0.8 m collapsed / 3 m expanded; 2-pin female (sensor) ↔ 3-pin MRS female (meter) |
| Enclosure | ASA+PC (UL 94 V-0), IP65, colour Lava; 172 × 92 × 39 mm |
| Battery | 4000 mAh LiPo; USB-C charging (also data). Recommended 5 V 0.5 A (~8 h, 0 to full); 5 V 3 A fast charge ~1 h (prefer normal charging for battery health) |
| Auto power OFF | After 5 minutes of inactivity (full power off, not sleep) |
| Storage | Max 100 readings (OK/SAVE) |
| Real Time Clock | Coin cell keeps date/time running when powered off |
| Warranty | 1 year |
Controls
- Power On key — switches the meter on; the Menu screen appears.
- Arrow keys — navigate the Menu and change values.
- OK — open the selected menu item.
- Back — return to the previous screen / Main Menu.
- OK/SAVE — store the on-screen reading (follow on-screen instructions).
Note: the meter powers OFF automatically after 5 minutes without a key press. Power it on again from start.
Charging
IRD202 has a USB-C connector on top for charging and data transfer. Charge with 5 V DC, 0.5 A (2.5 VA): 0 to full in about 8 hours (recommended). A 5 V DC, 3 A (15 VA) charger fast-charges in about 1 hour, but fast charging affects battery health — use normal charging most of the time. The battery is internal; no removal is needed.
How to Set Date/Time
Saved readings carry the date and time. A coin cell keeps the Real Time Clock running even when the meter is off.
If the instrument is Off:
- Press Power On. The Menu screen appears.
- Use the Down Arrow to go to Set Date/Time.
- Press OK.
- Up/Down arrows change the highlighted value; Left/Right arrows move to the previous/next field.
- Press Back to return to the Main Menu.
If the instrument is On and in the Vibration Measurement screen:
- Press Back to return to the Main Menu.
- Use the Down Arrow to go to Set Date/Time and press OK.
- Set values with the arrow keys as above.
- Press Back to return to the Main Menu, then reopen vibration measurement.
How to Measure & Save
- Connect the sensor to the meter with the coiled cable.
- Power on the meter.
- Open the vibration measurement screen from the Menu.
- Choose the parameter (Acceleration, Velocity, Displacement or Spike Energy) and units.
- Mount the sensor firmly on the measuring point.
- Wait briefly for a stable reading.
- Press OK/SAVE and follow on-screen instructions to store it.
- Power off, disconnect the cable gently and pack the kit.
Cable & Sensor
IRD202 uses an accelerometer input. Any IEPE/ICP 2-pin accelerometer with nominal sensitivity 100 mV/g can be used. The kit includes the IRD521 sensor (2-pin, 100 mV/g).

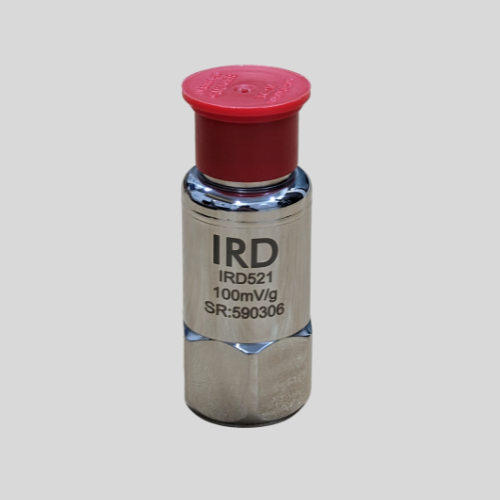

IRD521 Vibration Sensor, Accelerometer 100 mV/gOne coiled cable is supplied: 0.8 m collapsed, 3 m expanded. 2-pin female connector at the sensor end, 3-pin MRS female connector at the meter end. Align connectors and do not force them.

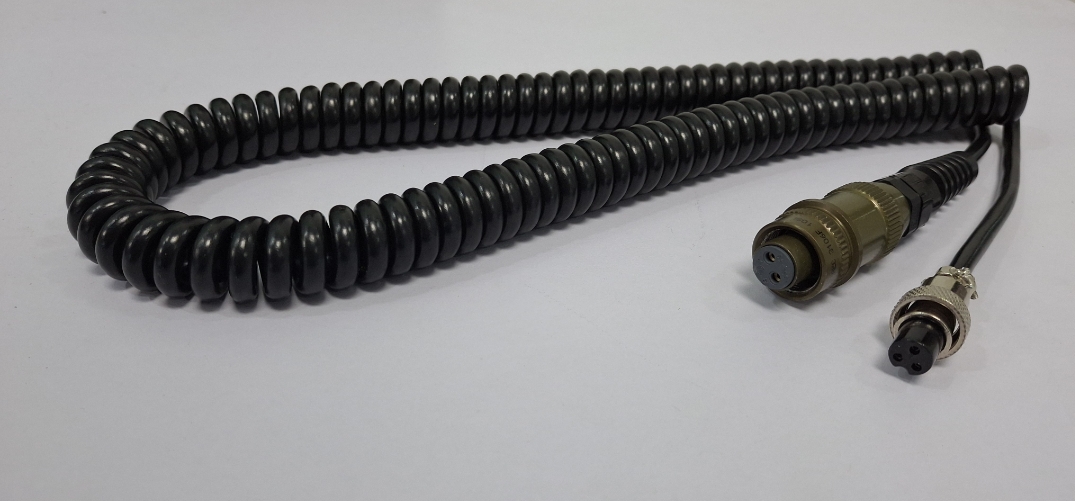

Coiled Cable of IRD202
IRD202 Data Explorer
Saved readings can be transferred to a Windows PC with the IRD202 Data Explorer software. Connect with a USB cable (USB-C at the meter; USB-A or USB-C at the PC). A USB-C to USB-C cable is supplied in the kit. In the software, choose the parameter (Acceleration, Velocity, Displacement or Spike Energy) and units, then Connect and Collect Data. Buttons are provided to Export to Excel, Clear the on-screen data and contact Service Support.

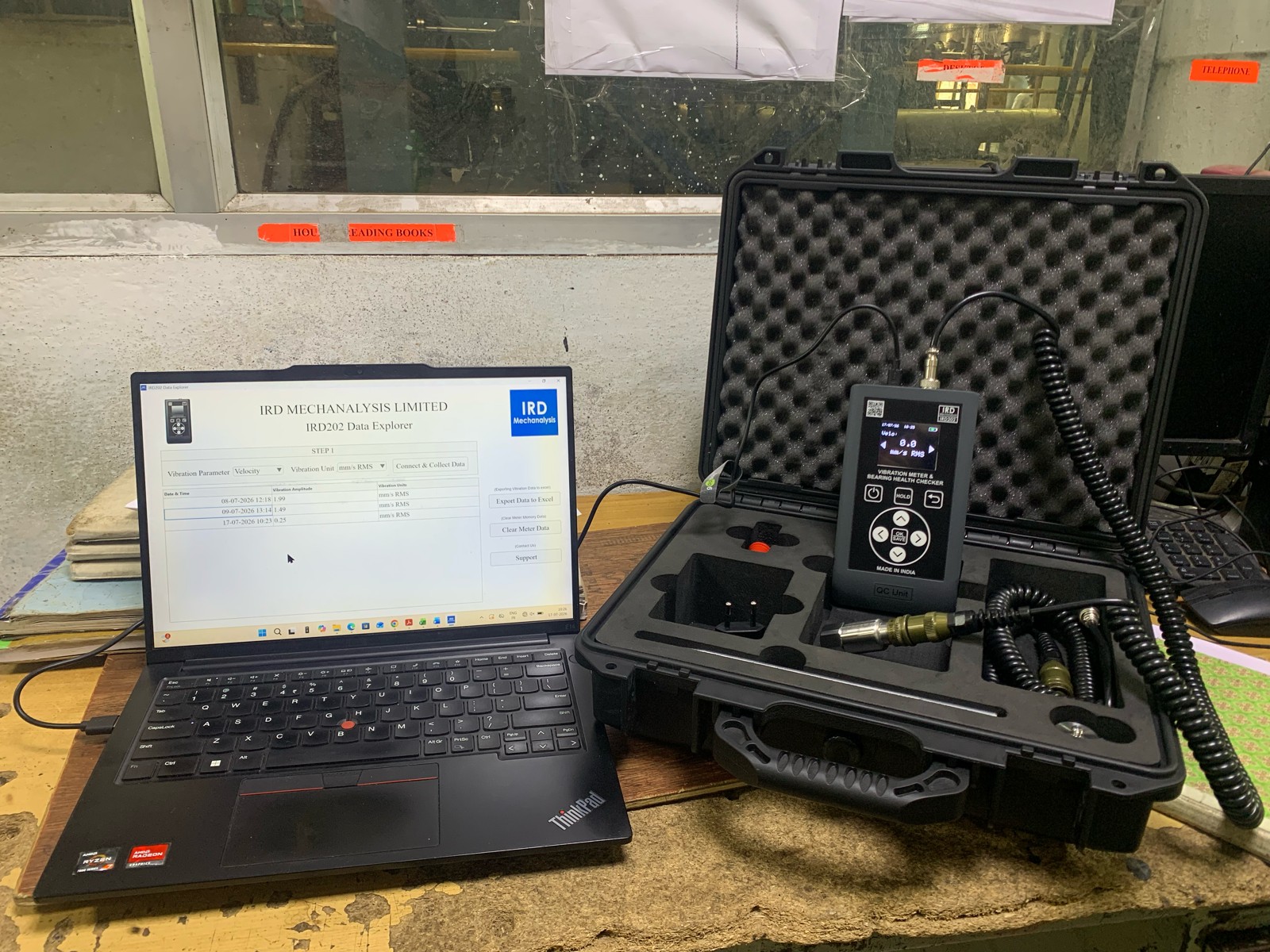

IRD202 Meter connected to PC and IRD202 Data Explorer Software
Troubleshooting
| Problem | Check |
| Won’t power on / charge | Charge via USB-C with a 5 V 0.5 A charger for up to 8 h; try another cable/charger; then press Power On. |
| Switches off mid-job | Auto power OFF after 5 min with no key press — power on again. If it happens sooner, charge the battery. |
| Can’t save a reading | Memory holds max 100 readings — transfer to Data Explorer and clear. Press OK/SAVE once and follow on-screen prompts. |
| No / unstable reading | Check cable is fully seated at both ends; use an IEPE/ICP 100 mV/g sensor; mount the sensor firmly and wait for it to settle. |
| Connector won’t mate | 2-pin end goes to the sensor, 3-pin MRS end to the meter. Align keys; do not force. |
| Data Explorer won’t connect | Use a data-capable USB-C cable (kit cable); meter powered on; Windows PC; latest software from the download link. |
| Wrong date/time on saved readings | Set Date/Time from the Main Menu. If it resets after power off, the RTC coin cell may need service. |
Repair and Calibration
IRD provides repair and National Traceable calibration at Thane, Maharashtra. Hand-carry in the morning for same-day return; by courier allow about 1 week. Portable meters carry a 1-year warranty. Contact
service@irdmech.com or WhatsApp
+91-9082527331.
