Pin Configuration of IRD570 Vibration Sensor

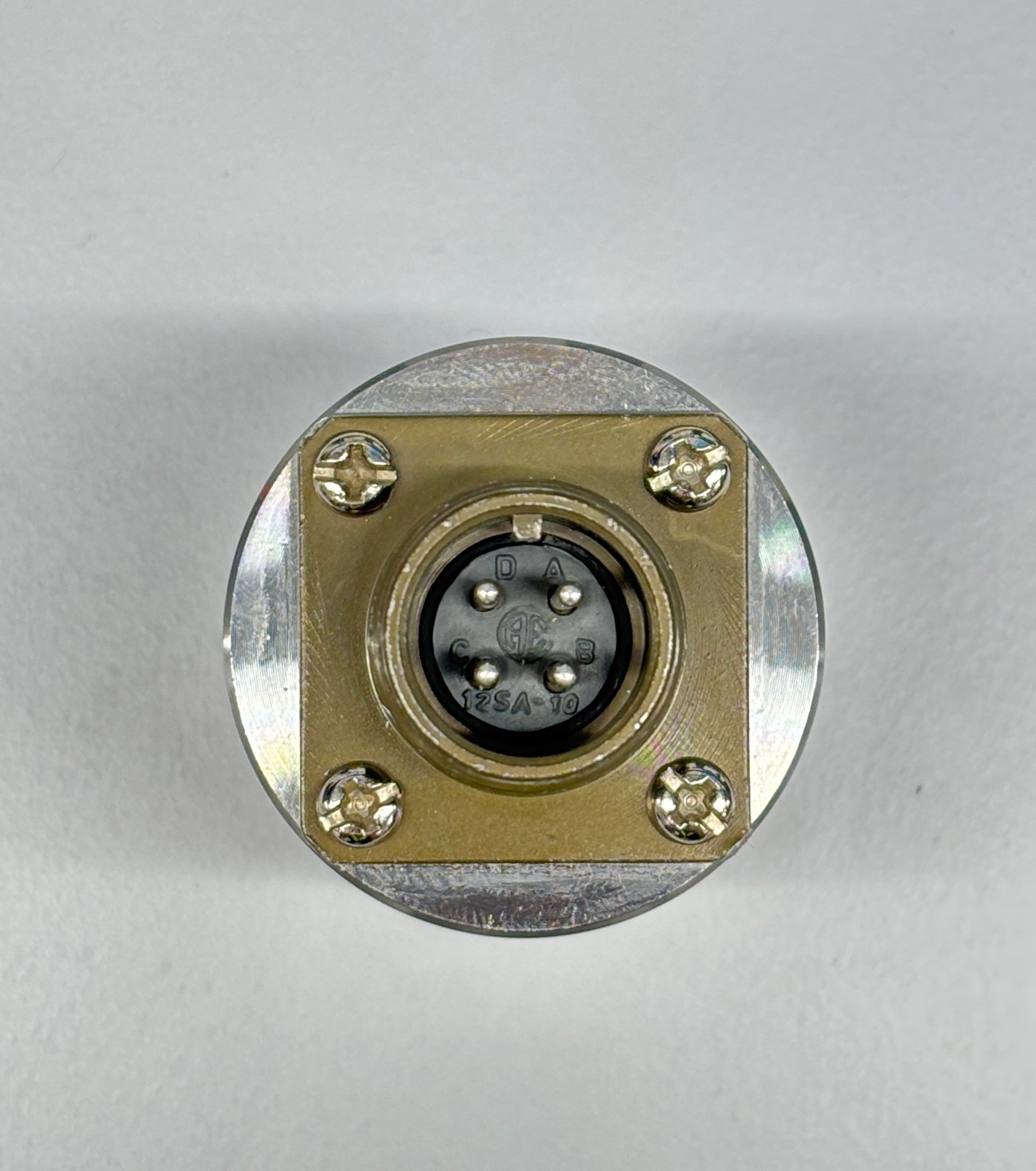

IRD570 is a 4 Pin Vibration Sensor that has 100 mV/g output. It's Pin configuration is as shown below:
- Pin A - Sensor Power (requires 24V DC)
- Pin B - Ground
- Pin C - Signal Output
- Pin D - Not Connected (Spare)
