What are the Characteristics of the Buffered Output of IRD7400?

IRD7400 is a Single Channel Din Rail mounted loop powered vibration transmitter. It provides Power to connected vibration sensor and generates 4-20 mA DC output, 0-1 V DC output proportional to set full scale vibration level. It also has a Buffered Output via BNC which provides a copy of the AC Dynamic Input Signal along with the DC Bias Component for connection to Data Acquisition Systems. The DC Bias component can be removed on request and is to be specified at the time of ordering

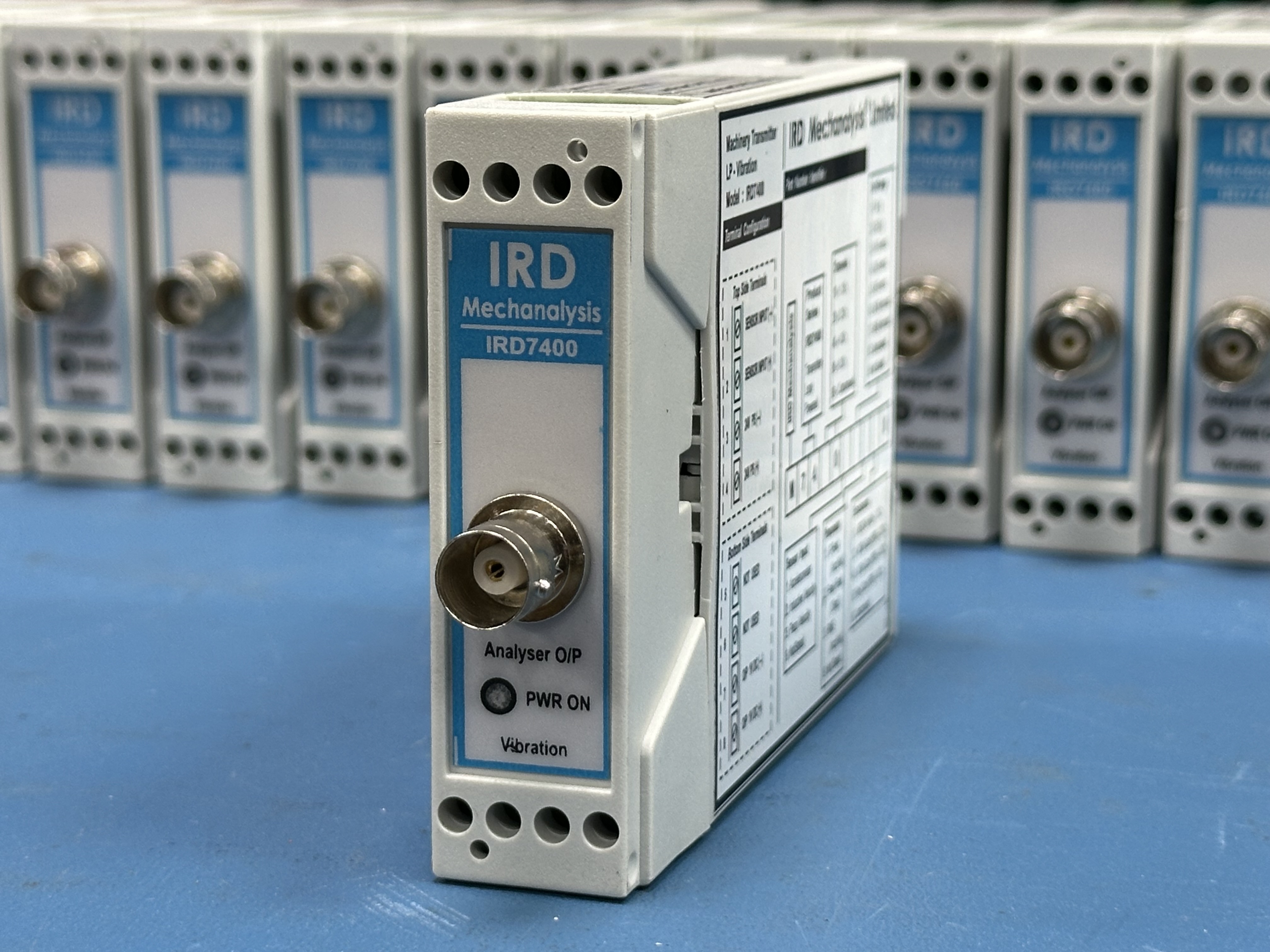

IRD7400 Din Rail mounted Loop Powered Vibration Transmitter
