Data Sheet of Stud used for Casing Vibration Sensors - SKU - STUD-M6

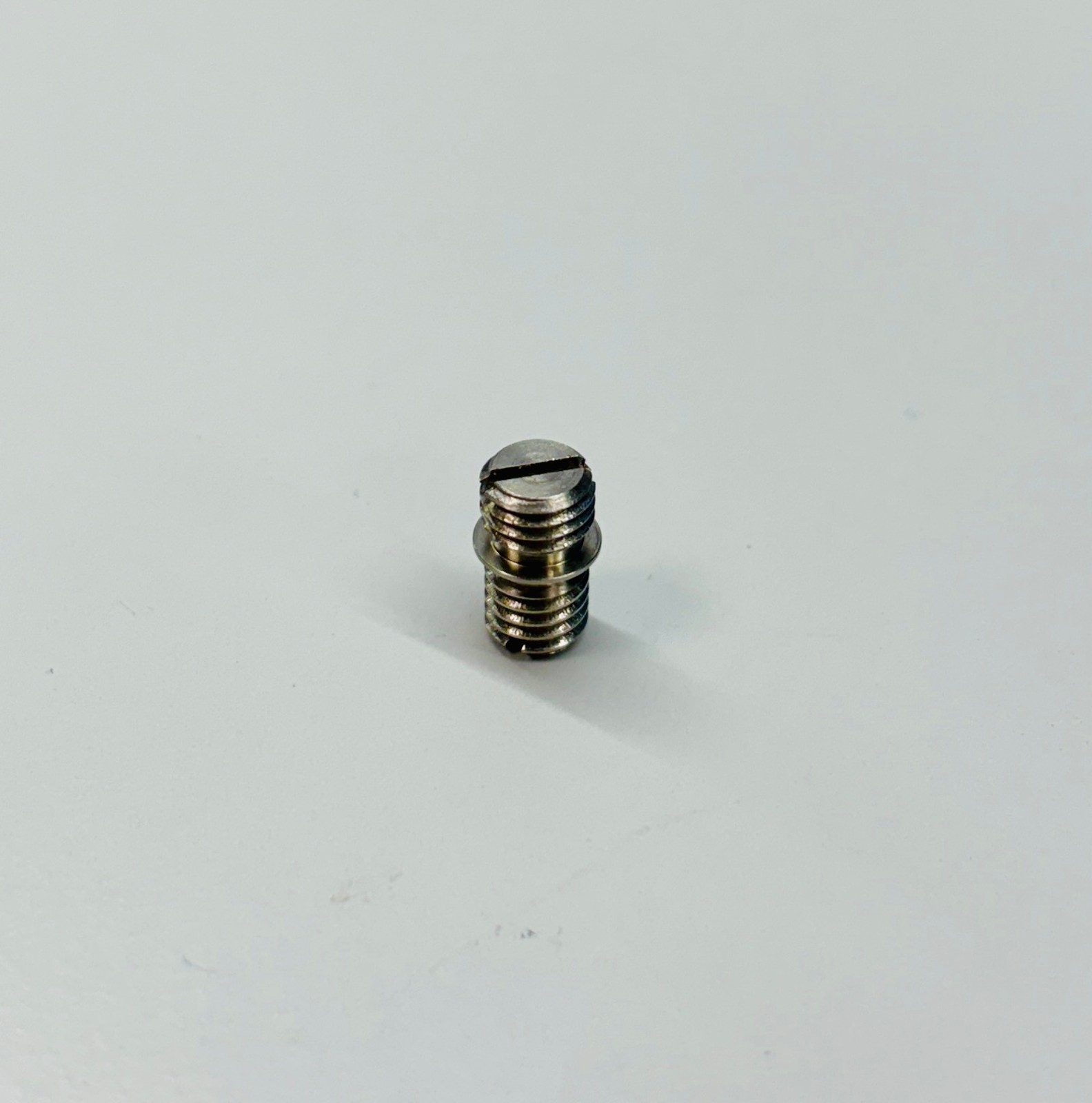

STUD-M6 is our Stock Keeping Unit (SKU) for Stud that has M6 x 1 for Mounting Pad End/Process Connection End and 1/4"-28 UNF for Casing Vibration Sensor end.
It is a Universal type of Stud because it is compatible with any Vibration Sensor that has 1/4"-28 UNF Female Thread Tap (most manufacturers of Casing Vibration Sensors maintain 1/4"-28 UNF Female Thread Tap on Sensor Base)

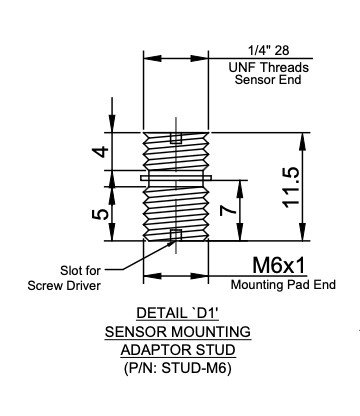

S No | Aspect | Value |
1 | Material of Construction | Stainless Steel SS304 |
2 | Total Length | 11.5 mm |
3 | Features | Screw Slots at both ends for ease of insertion and removal |
4 | Sensor End Connection | 1/4"-28 UNF and threaded part 4 mm long |
5 | Mounting Pad End/Process End Connection | M6 x 1 and threaded part 5 mm long |
| 6 | Partition | Partition between both ends at mid level - approx 7 mm from base of M6 x 1 End |
To Order please visit www.irdmech.com or send requirement on sales@irdmech.com
Specifications are subject to change for improvement in Product without prior notice
