Data Sheet of IRD570 Vibration Sensor, Accelerometer 100mV/g, 4 Pin Connector
Introduction

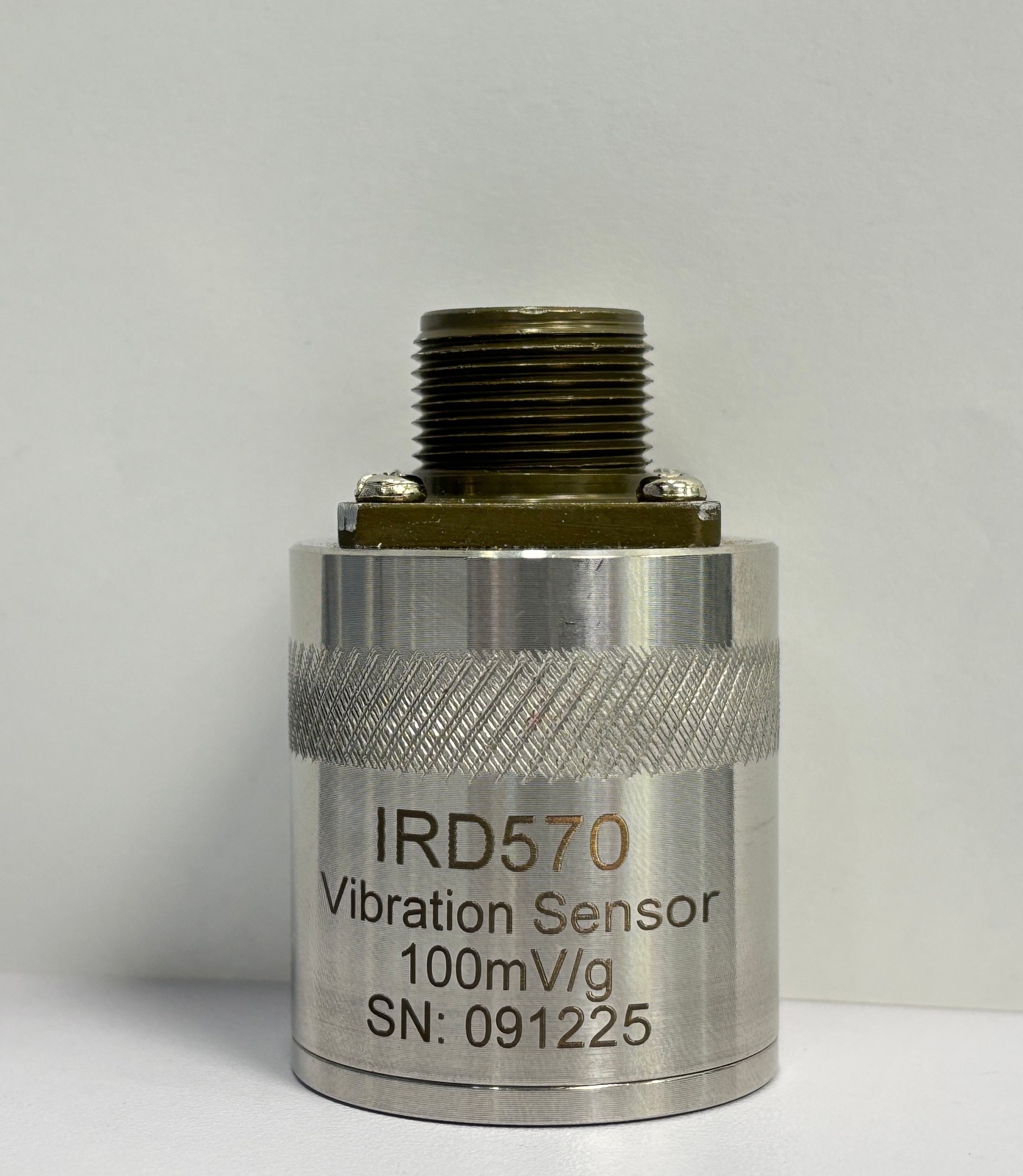

IRD570 is a Vibration Sensor made by IRD Mechanalysis Limited in India. It is an Accelerometer with Nominal Sensitivity 100mV/g and has a 4 Pin Top Exit Connector. It is designed for use with Online Vibration Monitoring Systems like IRD8800, IRD8100, IRD7100, IRD7200 and supported Third Party Vibration Monitoring Systems. It utilises a Piezo-Crystal in Compression mode to measure Vibration Acceleration
Specifications
Technical Performance
| S No | Aspect | Value |
1 | Mounted Base Resonance | 3 kHz |
2 | Measuring Sensitivity | 100 mV/g +/- 10% at 80 Hz Nominal |
3 | Frequency Response | 10 Hz (600 CPM) to 1 kHz (60k CPM) +/- 5% - ISO 20816 |
4 | Transverse Sensitivity | Less than 5% Average |
Electrical
| S No | Aspect | Value |
| 1 | Supply Voltage | 15-30 V DC |
| 2 | Connection Details | Pin A - +VDC (Supply); Pin B - Common; Pin C - Signal; Pin D - NC |
| 3 | Settling Time | 5 Seconds approx |
| 4 | Output Impedance | 22 kOhms Max |
Mechanical
| S No | Aspect | Value |
| 1 | Case Material | Stainless Steel SS304 (SS316L available on request) |
| 2 | Sensing Element/Construction | PZT/Compression |
| 3 | Mounting Torque | 8 Nm |
4 | Weight | 185 grams (Nominal) |
5 | Connector | 4 Pin MIL Male |
| 6 | Mounting Thread | 1/4"=28 UNF Female |
Environmental
| S No | Aspect | Value |
| 1 | Operating Temperature Range | 0 to 100 Deg C |
| 2 | Sealing | IP68 |
| 3 | Maximum Shock | 2000g |
Type Tests
Environmental
| S No | Aspect | Value |
| 1 | Cold Test | IEC 60068-2-1 |
| 2 | Dry Heat Test | IEC 60068-2-2 |
3 | Damp Heat Test | IEC 60068-2-30 |
4 | Shock Test | IEC 60068-2-27 |
5 | IP Rating | IEC 60529 |
6 | Corrosion Resistance | Salt Spray Test as per ISO 9227:2017 |
EMI EMC
| S No | Aspect | Value |
| 1 | Radiated Susceptibility Test | IEC 61000-4-3 |
| 2 | Electrostatic Discharge Test | IEC 61000-4-2 |
| 3 | Surge Test | IEC 61000-4-5 |
How to Order
Order Online on www.irdmech.com OR contact sales@irdmech.com for a Quote
